Sodikart · Catalog reference

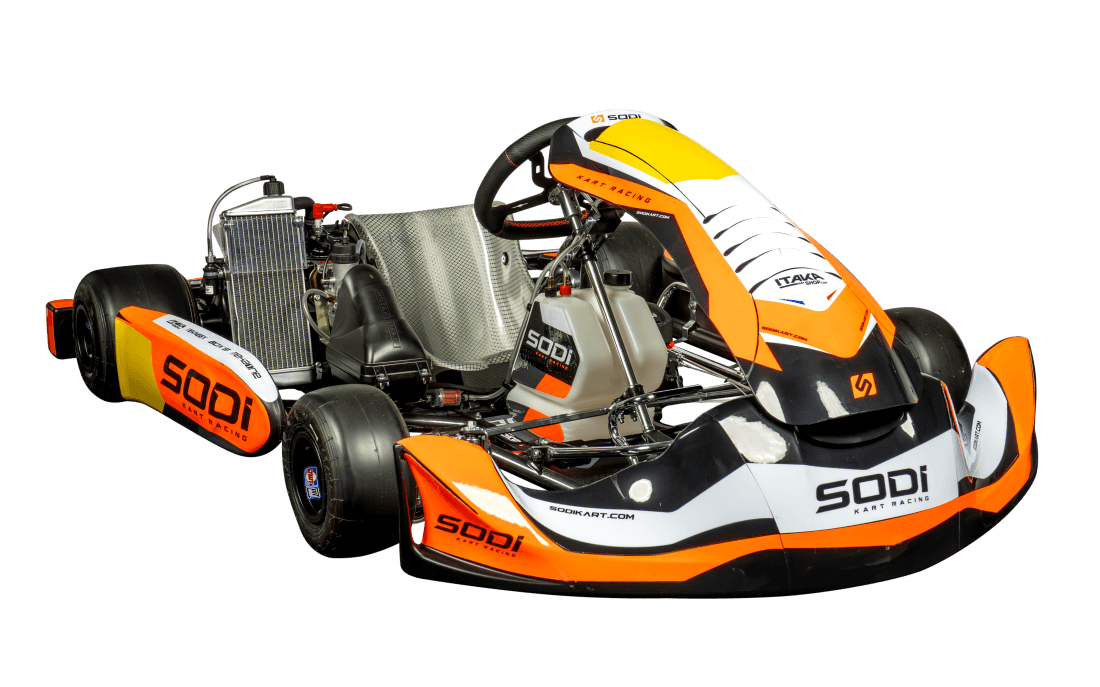

SODI Sigma RS3 2026
racing kart
The SIGMA RS3 has been developped especially for medium tyres in Rotax, X30 and OK, where the longer wheelbase and welded column support will ensure more effectiveness.
Technical details
- Seat
- Tekneex Racing Polyester
- Tank
- Removable 8 Liters
- Tube
- ø 30mm
- Brake
- 4-pistons hydraulic brake system - CIK
- Frame
- double tube removable - CIK
- Safety
- Protective base plate for break disk, brake pedal with 2 points attachment, integral chain cover, anti-locking bar
- Bodywork
- KG Sodi CIK approved
- Rear Axle
- Hollow steel ø 50mm - 3 bearings
- Rear hubs
- Anodised, fully machined, L. 90mm
- Wheelbase
- 1050 mm
- Brake disk
- Floating and turbo ventilated disk
- Stub axles
- ø 25mm "Hard"
- Rear bumper
- KG plastic
- Rear wheels
- Magnesium low volume, 212mm
- Frame colour
- Black + varnish
- Front wheels
- Magnesium low volume, 130mm
- Steering wheel
- Aluminium alcantara covering Sodi
- Axle bearing support
- Anodized, bearing ø 80mm
Source: www.sodikart.com
